SITRAK G7 400HP 8X4 Dump Truck

Published modelZZ3316N326ME1
Wheel base1950+3225+1350mm
Rear wheel track1830/1830mm
Front axle loading6500/7000kg
Front wheel track2022/2022mm
SITRAK G7 400HP 8X4 Dump Truck

Description

SINOTRUK SITRAK G7 400HP 8X4 DUMP TRUCK
Published model: ZZ3316N326ME1
Driving mode: 8X4
Wheel base: 1950+3225+1350mm
Length: 9.522m
Width: 2.55m
Height: 3.68m
Front wheel track: 2022/2022mm
Rear wheel track: 1830/1830mm
Curb weight: 15.5t
Load capacity: 15.37t
Type of tons: Heavy truck
Approach angle: 19°
Departure angel: 20°
Country of origin: China
Motor configuration
Motor type: Weichai WP10H400E50
Motor brand: Weichai
Cylinder number: 6 cylinders
Fuel type: Diesel
Displacement: 9.5L
Emission standard: National-V
Max power: 400Hp
Max output power: 294Kw
Max torque: 1900N·m
RPM of max torque: 1200-1300rpm
Rated RPM: 1900rpm
Cylinder arrangement: Straight
Carriage configuration
Carriage length: 6.8m
Carriage width: 2.35m
Carriage height: 1.5m
Carriage type: Rear dump
Gearbox configuration
Gearbox brand: Sinotruck
Gear shifting: MT
Forward gear: 12 gears
Reverse gear: 2 gears
Fuel tank confituration
Fuel tank material: Aluminium alloy
Chassis configuration
Front axle loading: 6500/7000kg
Rear axle loading: 17500kg
Rear axle reduction ratio: 5.26
Tire configuration
Tire type: 12.00R20 18PR
Tire number: 12 pieces

Product Images

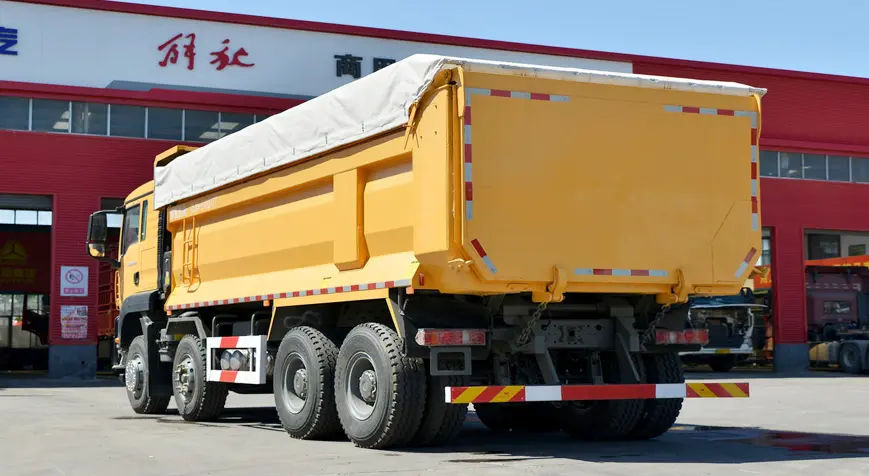

SITRAK G7 400HP 8X4 Dump Truck
SITRAK G7 400HP 8X4 Dump Truck
Powerful Engine: The truck is equipped with a 400 horsepower (HP) engine, providing ample power for hauling heavy loads. This high-performance engine ensures smooth operation and optimal fuel efficiency. 8X4 Chassis: The 8X4 chassis configuration offers superior stability and traction, making it ideal for off-road and rough terrain applications. The additional axles provide enhanced load-carrying capacity and improved maneuverability.

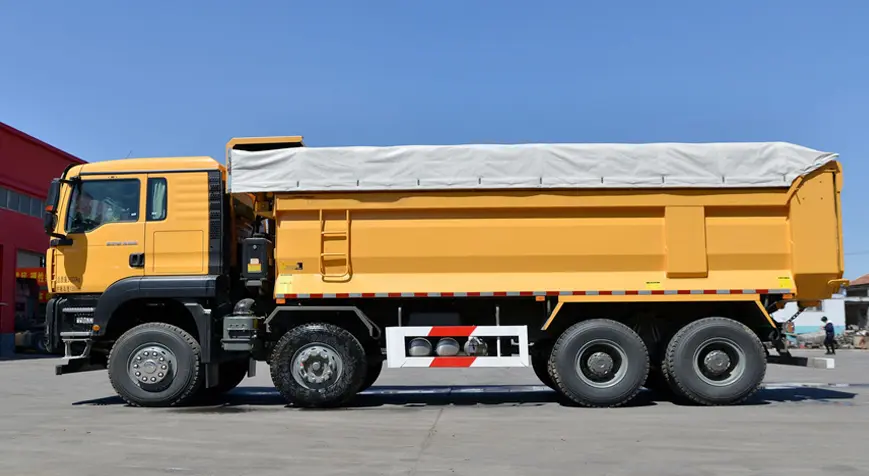

SITRAK G7 400HP 8X4 Dump Truck
SITRAK G7 400HP 8X4 Dump Truck
Comfortable Cabin: The driver's cabin is designed with the operator's comfort in mind, featuring a spacious interior, adjustable seating, and ergonomic controls. The cabin also includes climate control systems, ensuring a comfortable working environment for the driver. Safety Features: The SITRAK G7 400HP 8X4 dump truck incorporates a range of safety features, including air brakes, ABS, and backup cameras, to enhance overall safety during operation. These features help prevent accidents and ensure the well-being of the driver and other road users.

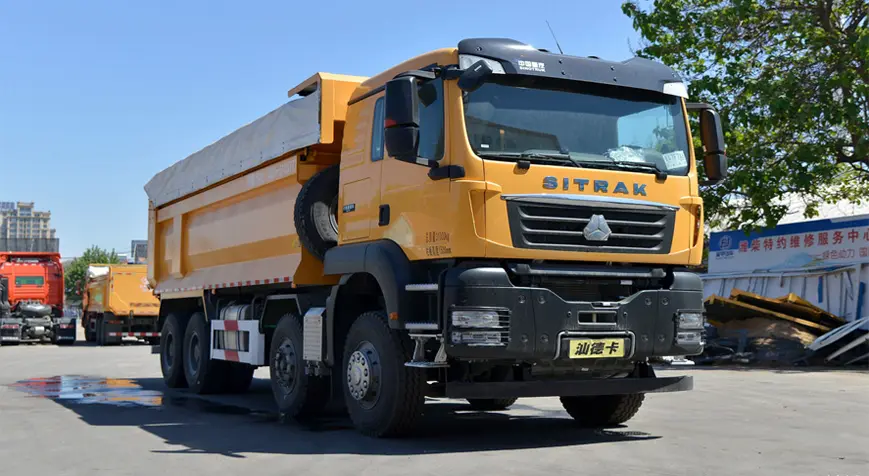

SITRAK G7 400HP 8X4 Dump Truck
SITRAK G7 400HP 8X4 Dump Truck
Heavy-Duty Body: The dump truck features a durable and robust body, designed to withstand harsh working conditions and heavy loads. The body is constructed using high-quality materials, ensuring long-lasting performance and resistance to wear and tear. Efficient Transmission: The truck is equipped with an advanced transmission system that provides seamless gear shifting and optimized power delivery. This ensures smooth acceleration and efficient operation, even when carrying heavy loads.
SITRAK G7 400HP 8X4 Dump Truck
SITRAK G7 400HP 8X4 Dump Truck
Customization Options: The truck can be customized to meet specific customer requirements, with options such as different body styles, payload capacities, and auxiliary equipment. This flexibility allows businesses to tailor the vehicle to their unique needs and preferences.
