Sitrak G7h 630 HP 6x4 Tractor Truck

Description

SITRAK G7H 630 HP 6X4 TRACTOR TRUCK
Driving license:	A2	Announcement Model:	ZZ4256Y324HF1B
Drive type:	6X4	Wheelbase:	3400+1400mm
engine:	Weichai WP14T630E62	Gearbox:	Sinotruk HW27716XAL
Rear axle ratio:	2.71	Body length:	7.17 m
Body width:	2.55 m	Ride height:	3.96 m
Front track:	2022mm	Rear track:	1830/1830mm
Vehicle weight:	8.8 tons	Total mass:	25 tons
Total traction mass:	40 tons	Maximum speed:	89km/h
Origin:	Zhangqiu, Shandong	Tonnage level:	Heavy Truck
Version:	Luxury Edition	Fuel Type:	diesel fuel
Engine parameters
Engine Model:	Weichai WP14T630E62	Engine Brand:	Weichai
Number of cylinders:	6 cylinders	Fuel Type:	diesel fuel
Cylinder arrangement:	In-line	Displacement:	13.5L
Emission standards:	National VI	Maximum horsepower:	630 hp
Maximum output power:	463kW	Maximum Torque:	2750N m
Maximum torque speed:	900-1400rpm	Rated speed:	1800rpm
Cab parameters
Cab:	High ceiling and flat floor	Number of passengers allowed:	2 people
Number of Seat Rows:	Half row	Driver’s seat type:	Airbag shock absorbing seat
Skylight:	Electric sunroof
Gearbox parameters
Gearbox Model:	Sinotruk HW27716XAL	Gearbox brand:	Sinotruk
Shifting method:	AMT	Forward gears:	16 levels
Reverse gear number:	2
tank
Fuel tank capacity:	550+550L
Chassis parameters
Front axle description:	7.1T front axle	Rear Axle Description:	12T double rear axle
Permissible load on front axle:	7000kg	Permissible load on rear axle:	18000(two-axle group)kg
Speedatio:	2.71	Number of springs:	2/3,2/2
Aluminum Alloy Wheels:	font>
tire
Number of tires:	10	Tire specifications:	12R22.5 18PR

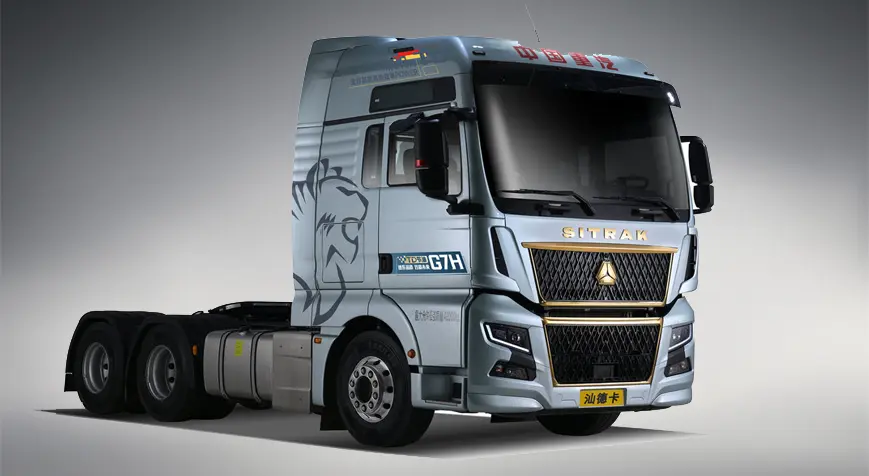

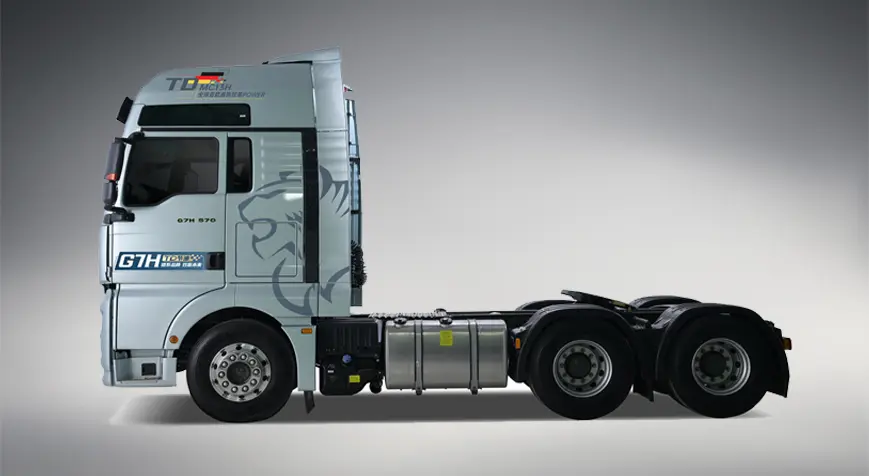

Product Images

SITRAK G7H 630 HP 6X4 TRACTOR TRUCK

Powerful Engine: The SITRAK G7H is equipped with a high-performance engine that delivers exceptional power and torque, ensuring smooth and efficient operation even under demanding conditions. Robust Chassis: The truck features a sturdy chassis that provides excellent stability and durability, allowing it to handle heavy loads and rough terrain with ease.

SITRAK G7H 630 HP 6X4 TRACTOR TRUCK

Advanced Suspension System: The SITRAK G7H comes with an advanced suspension system that ensures a comfortable ride for the driver and passengers while maintaining optimal control and handling during transit. Efficient Transmission: The vehicle is fitted with an advanced transmission system that optimizes gear shifting for better fuel economy and reduced emissions.

SITRAK G7H 630 HP 6X4 TRACTOR TRUCK

Driver-Friendly Cabin: The spacious and well-equipped cabin offers a comfortable driving environment with various amenities such as air conditioning, heating, adjustable seats, and a comprehensive dashboard display. Safety Features: The SITRAK G7H incorporates a range of safety features, including ABS brakes, airbags, and advanced monitoring systems, to ensure the protection of the driver, passengers, and other road users.

SITRAK G7H 630 HP 6X4 TRACTOR TRUCK

Fuel Efficiency: The truck is engineered to minimize fuel consumption without compromising on performance, making it an environmentally friendly and cost-effective choice for long-distance transportation. Customization Options: The G7H can be customized to meet specific requirements, with options for different body styles, axle configurations, and additional equipment to suit various applications and industries.
